Ubuntu 16.04 下 PVIO 的编译与运行



[TOC]

Overview

  • code: https://github.com/zju3dv/PVIO

  • paper

    @inproceedings{PRCV-LiYHZB2019,
      author={Jinyu Li and Bangbang Yang and Kai Huang and Guofeng Zhang and Hujun Bao},
      title     = {Robust and Efficient Visual-Inertial Odometry with Multi-plane Priors},
      booktitle = {Pattern Recognition and Computer Vision - Second Chinese Conference,
                   {PRCV} 2019, Xi'an, China, November 8-11, 2019, Proceedings, Part {III}},
      series    = {Lecture Notes in Computer Science},
      volume    = {11859},
      pages     = {283--295},
      publisher = {Springer},
      year      = {2019}
    }


Note: 本博客主要是记录下在本人Ubuntu 16.04的PC平台上编译时遇到的问题和解决办法。

Build

Dependencies

  • cmake 3.18.0
  • GCC 9.3.0
  • Eigen 3.3.7
  • Ceres Solver 1.14.0
  • OpenCV-3.3.1 (from ROS kinetic)
  • FFMPEG 4.3.2

Build

  • download
    git clone https://github.com/zju3dv/PVIO.git

  • cmake
    cd PVIO && mkdir build && cd build
    cmake -DCMAKE_BUILD_TYPE=Release ..


    Tips: 执行 cmake 过程中会下载 GIT_REPOSITORY,因网络原因可能导致部分下载失败,可改善网络或者多执行几次直到全部下载下来。

  • make
    make -j1


Errors when make

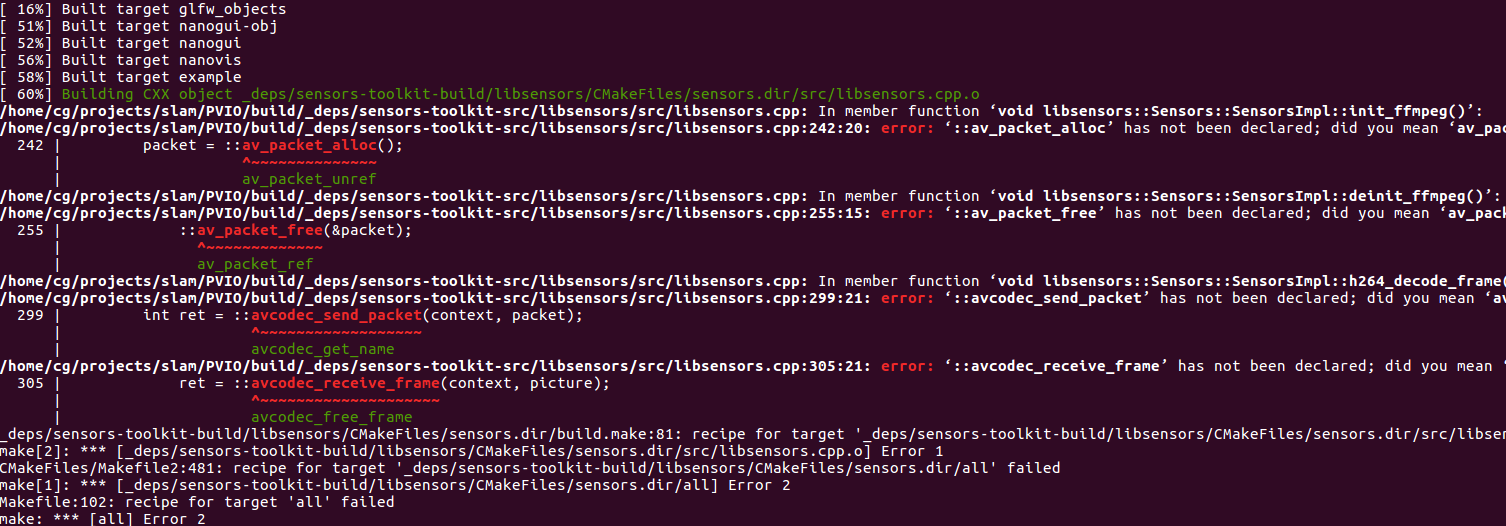

  • error: ‘::av_packet_alloc’ has not been declared

    解决办法:升级 FFMPEG(之前是FFMPEG2) 和 对应的 libavcodec

    sudo add-apt-repository ppa:jonathonf/ffmpeg-4
    sudo apt update
    sudo apt install ffmpeg
    ffmpeg -version

    sudo apt install libavcodec-dev

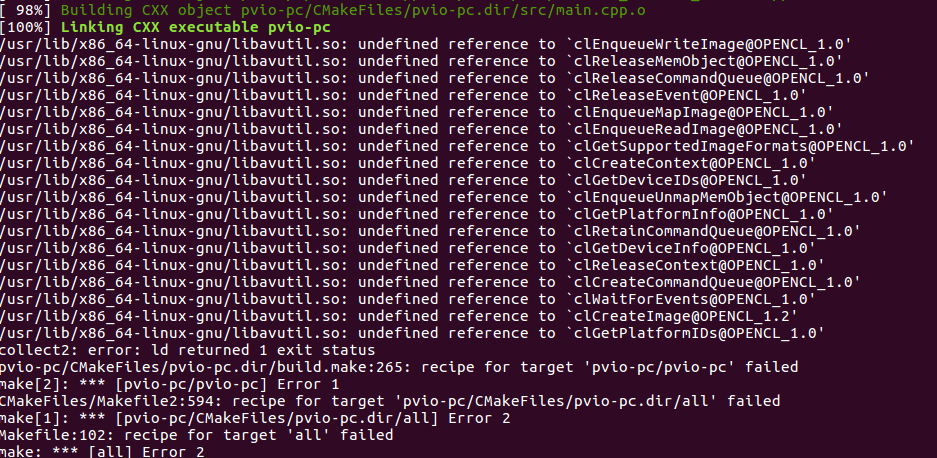

  • /usr/lib/x86_64-linux-gnu/libavutil.so: undefined reference to clEnqueueWriteImage@OPENCL_1.0

    解决办法:

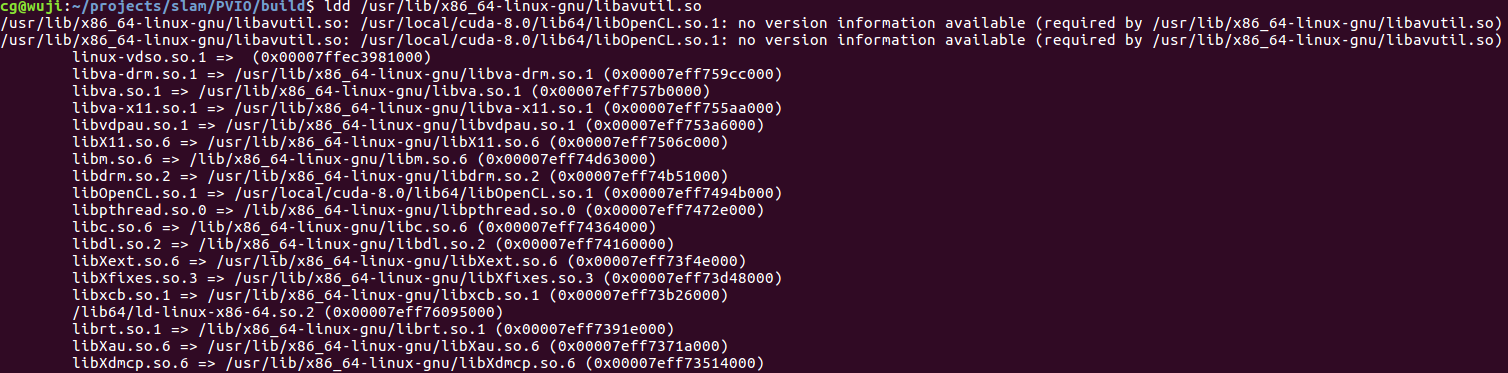

    因我之前装了cuda8,libavutil.so 链接到了 cuda 中的 libOpenCL.so.1

    使其链接到 /usr/lib/x86_64-linux-gnu/ 中的 libOpenCL.so.1 即可。

    cd /usr/local/cuda-8.0/lib64
    sudo unlink libOpenCL.so.1
    sudo ln -s /usr/lib/x86_64-linux-gnu/libOpenCL.so.1.0.0 libOpenCL.so.1


Run

  • run with dataset
    ./pvio-pc/pvio-pc euroc:///home/cg/dev_sdb/datasets/ETH_ASL_Datasets/EuRoC_MAV/V1_01_easy/mav0 ../config/euroc.yaml
