VINS-Mono LoopClosure


  • Sep 29, 2020
  • 0 views

[TOC]

Overview

  • 忽略掉了 shift to base frame：w_t_vio, w_r_vio

loop closure 初始化

  • PoseGraph 设置
    • 设置参数
    • 启动线程 PoseGraph::optimize4DoF 或 PoseGraph::optimize6DoF
    • 加载 词典文件
  • 启动线程 SystemROS::loop_closing

线程 loop_closing

  • 获取同步的图像、位姿、2D与3D点信息
    • img
    • pose
    • point_id, point_3d, point_2d_uv, point_2d_normal
  • 构建 KeyFrame
    • KeyFrame 成员变量初始化
    • computeWindowBRIEFPoint: 根据 point_2d_uv 生成 window_keypoints， 计算其对应的描述子 window_brief_descriptors
    • computeBRIEFPoint: 提取 FAST 特征点，一起和 point_2d_uv 放到 keypoints，计算其描述子 brief_descriptors 和 keypoints_norm
  • addKeyFrame
    • cur_kf->index = global_index++;
    • loop_index = detectLoop(cur_kf, cur_kf->index)
      • db.query(keyframe->brief_descriptors, ret, 3, max_frame_id_allowed)
      • db.add(keyframe->brief_descriptors);
    • KeyFrame* old_kf = getKeyFrame(loop_index)
    • cur_kf->findConnection(old_kf)
      • point_2d_uv –> point_2d_norm
      • old_kf->keypoints –> old_kf->keypoints_norm
      • searchByBRIEFDes: window_brief_descriptors <–> old_kf->brief_descriptors –> matched_2d_old_norm
      • PnP RANSAC (利用PnP得到回环帧位姿): matched_3d <–> matched_2d_old_norm –> PnP_T_old, PnP_R_old
      • get loop_info (计算PnP得到的回环帧的位姿与当前帧位姿的相对变换): relative_t, relative_q, relative_yaw
    • earliest_loop_index = loop_index;
    • optimize_buf: optimize_buf.push(cur_kf->index);
    • updatePose
      cur_kf->getVioPose(P, R);
P = r_drift * P + t_drift;
R = r_drift * R;
cur_kf->updatePose(P, R);
    • keyframelist: keyframelist.push_back(cur_kf);

线程 optimize4DoF

  • get first_looped_index and cur_index
    while (!optimize_buf.empty()) {
    cur_index = optimize_buf.front();
    first_looped_index = earliest_loop_index;
    optimize_buf.pop();
}
  • ceres solver 优化
    • 遍历 keyframelist， 忽略 first_looped_index 之前的 keyframe，直到 cur_index
    • getVioPose –> t_array, q_array, euler_array
    • problem.AddParameterBlock: euler_array, t_array
    • problem.SetParameterBlockConstant: first_looped_index
    • problem.AddResidualBlock
      • 相邻帧约束关系
      • 回环边和顶点
    • ceres::Solve(options, &problem, &summary);
  • updatePose
    • 遍历 keyframelist， 忽略 first_looped_index 之前的 keyframe，直到 cur_index
    • updatePose: euler_array, t_array

  • get drift: yaw_drift, r_drift, t_drift \(T_{drift} = T_{opt} * T_{vio}^{-1}\)

  • updatePose
    • 遍历 cur_index 之后的 keyframelist
    • updatePose
      (it)->getVioPose(P, R);
P = r_drift * P + t_drift;
R = r_drift * R;
(it)->updatePose(P, R);
  • updatePath
    • 遍历 keyframelist，获取位姿 getPose 给 Path

线程 optimize6DoF

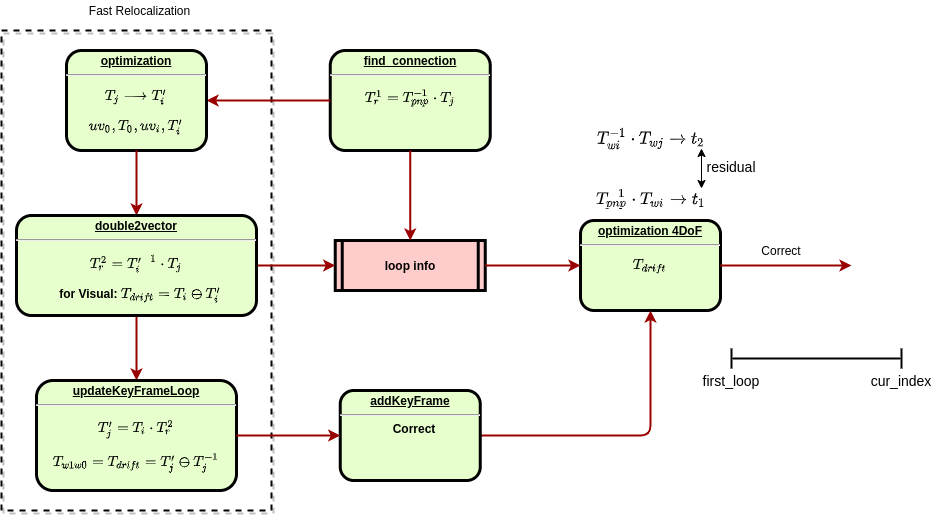

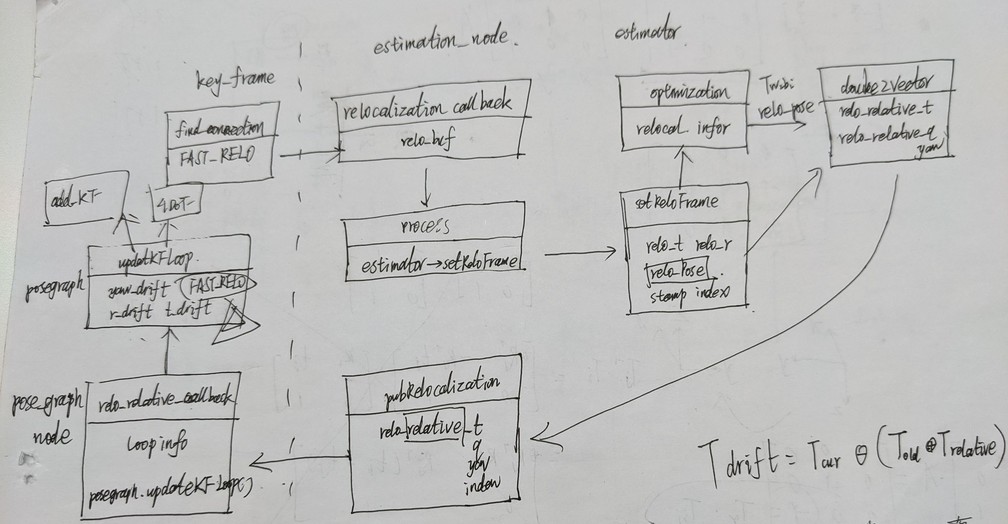

FAST_RELOCALIZATION

  • cur_kf->findConnection(old_kf)
    • publish: 回环帧的 matched_2d_old_norm, matched_id, T_wi
  • relocalization_callback
    • subscribe: get relo_buf
  • process loop
    • get latest relo_msg from relo_buf
    • estimator.setReloFrame(frame_stamp, frame_index, match_points, relo_t, relo_r);
      • relo_frame_index
      • match_points
      • prev_relo_t
      • prev_relo_r
      • relo_Pose <– para_Pose
      • relo_frame_local_index <– i
      • relocalization_info = 1
  • optimization
    • problem.AddParameterBlock: relo_Pose
    • problem.AddResidualBlock
  • double2vector(?????)
    • drift_correct_r, drift_correct_t
    • relo_relative_q, relo_relative_t, relo_relative_yaw
  • publish
    • pub_relo_path
      • drift_correct_r, drift_correct_t + estimator.Ps[WINDOW_SIZE] –> correct_t, correct_q
    • pub_relo_relative_pose (relo_relative_pose)
      • relo_relative_q, relo_relative_t, relo_relative_yaw
  • relo_relative_pose_callback
    • loop_info <– relo_relative_pose
    • posegraph.updateKeyFrameLoop(index, loop_info);
      • get drift: yaw_drift, r_drift, t_drift
