[TOC]

Overview

• the note is from Apollo Self-Driving Car Lesson

Self-Driving Overview

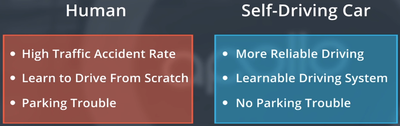

• why need self-driving car

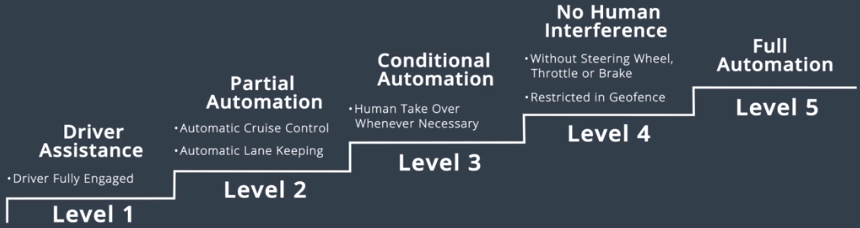

• 5 driving levels

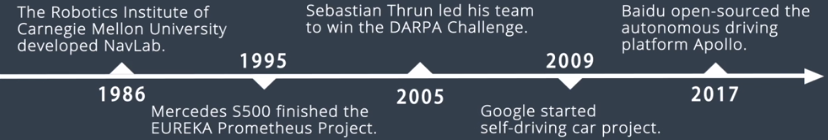

• self-driving car history

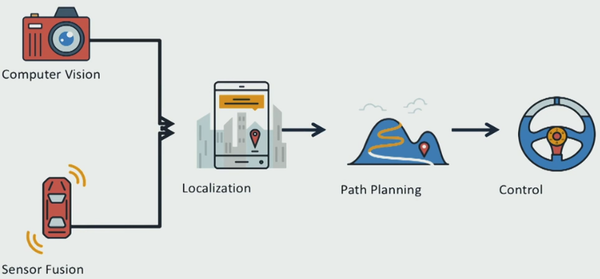

• how self-driving car work

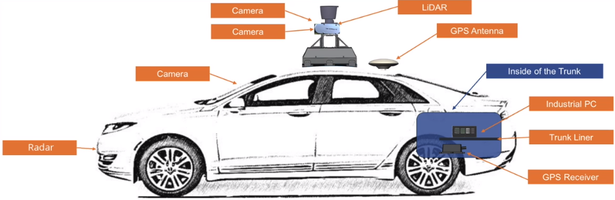

• hardware


• Open Sofware Stack
  • RTOS: Ubuntu + Apollo Kernel
  • ROS
  • Decentralization: No ROS Master Scheme
  • Protobuf
• Cloud Services
  • HD Map
  • Simulation
  • Data Platform
  • Security
  • OTA(Over-The-Air) updatea
  • DuerOS

High-Definition Map

• 3d representation of the road
• centimeter-level precision
• localization: data match

• OpenDRIVE standard

• HD map construction

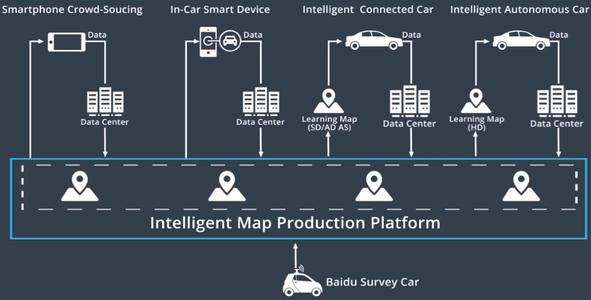

• HD map crowdsourcing


Localization

• need 10 centi-meter accuracy, but GPS error 1-3 meter

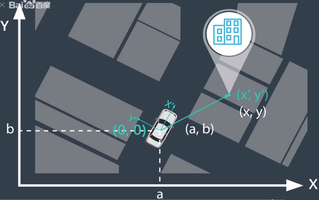

• localization

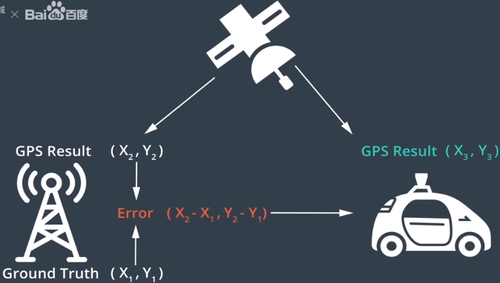

• GNSS RTK


• Inertial Navigation
  • accelerator
  • gyroscope
• LiDAR localization
  • ICP
  • filter: Histogram
  • advantage: robust
• visual localization
  • match

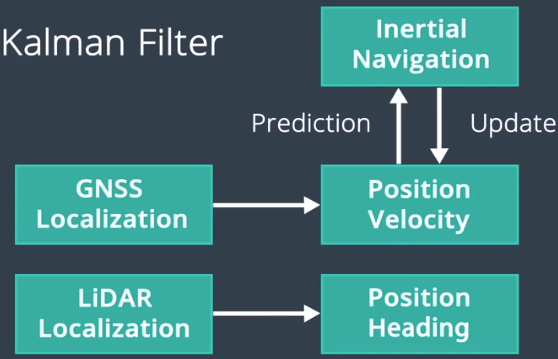

• multi-sensor fusion: kalman filter: prediction(Inertial) and update(GNSS LiDAR)


Perception

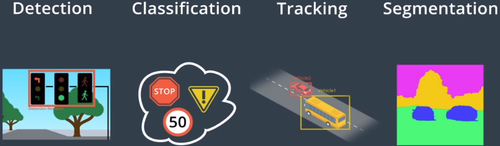

• perception overview

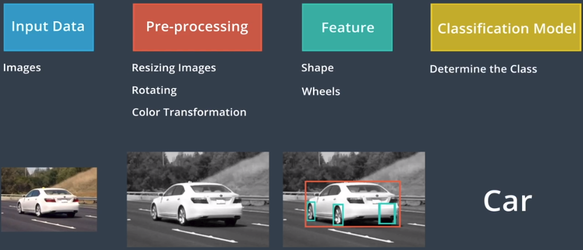

• classification pipeline


• Camera images

• LiDAR images

• Machine Learning
  • born in 1960s
  • supervised learning
  • unsupervised learning

• Neural Network

• Backpropagation

• Convolutional Neural Network

• Detection and Classification

• Tracking

• Segmentation

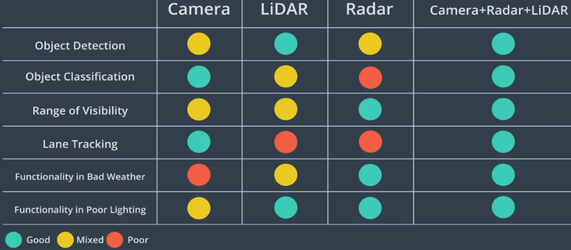

• Sensor Data Comparision


• Perception Fusion

Prediction

• realtime & accuracy

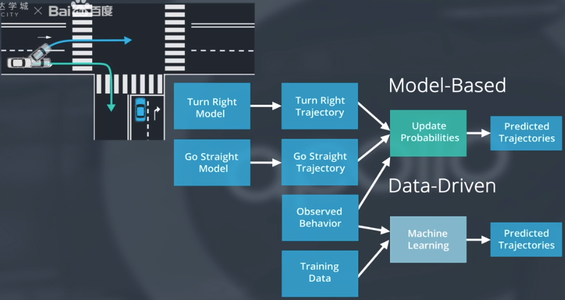

• approaches: model-based & data-driven


• Trajectory Generation
  • polynomial model

Planning

• goal: find the best path from A to B on the map

• input: map, our position and destination

• World to Graph

• A star algorithm

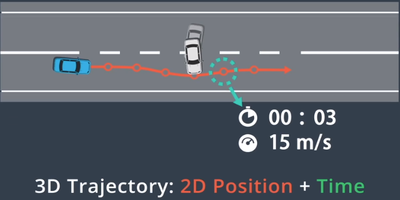

• 3D trajectory

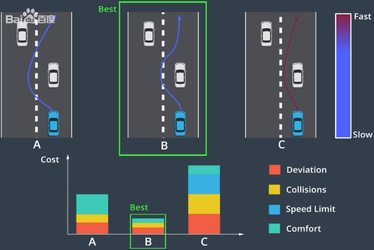

• Evaluating a Trajectory


• Frenet Coordinates

• Path-Velocity Decoupled Planning

Control

• steering, acceleration and brake


• PID

• LQR

• MPC
